Scenarios

This page contains well-related information, such as input well data, scenarios overview and the status of scenarios being performed in whitson⁺.

1. Introduction

Key functionality

• Property Overview
• Scenario Overview
• Add Atrribute(s)
• Export
• Edit All

2. Property Overview

User can change the values of well information, reservoir properties and completion metrics here. Changing any of these values will also automatically update those values for all modules in the same scenario, and vice versa.

2.1 Well Headers:

Each well (and individual scenarios) can have the following header information which can be modified independently in each scenario.

The key properties used in simulation or crucial for RTA and other calculations are highlighted below. If the property is not highlighted, it is only for identification, classification, normalization and/or filtering, grouping, coloring by, etc.

2.1.1 Well Information

1. UWI - typically, an API number or Aries Propnum, duplicates are allowed.
2. External ID - Checked for uniqueness, no duplicates allowed.
3. Sub-Field
4. Reservoir
5. Formation
6. County
7. State
8. Lat/Long location
9. Process - You can set up surface processes such as multi-stage separation with a name. This field shows the named surface process in use for the well.
10. Operator

Additional information on location data

whitson⁺ allows you to add the surface and bottomhole latitude and longitude coordinates to populate the GIS maps for the project. This is not super crucial but is very useful as it allows you to view wells spatially on the map and color them by various other well header information associated with these wells. The location information is also very useful for the type well feature which incorporates a GIS map to visualize the wells used as input for the type well.

NAD83 vs NAD27 datums for location data - Use NAD83, which is just more accurate. The difference is in a few ft, which is more than the resolution we need here for now.

1. Epoch: NAD27 was established in 1927, while NAD83 was established in 1983. This means that the reference points and measurements for NAD27 were based on surveys conducted before 1927, whereas NAD83 was based on more modern surveys and technology available in 1983.

2. Datum Definition: NAD27 was based on the Clarke ellipsoid of 1866, which was the best available representation of the Earth's shape at the time. NAD83, on the other hand, is based on the GRS80 ellipsoid, which is a more accurate representation of the Earth's shape and is compatible with GPS technology.

3. Coordinate Accuracy: NAD83 offers higher accuracy compared to NAD27. This is because NAD83 incorporates more precise surveying techniques and technologies that were not available when NAD27 was established.

4. Datum Shift: There is a noticeable difference between the coordinates referenced to NAD27 and NAD83. This difference can vary depending on the location but is generally in the range of several meters.

5. Usage: While NAD27 was widely used in older maps, surveys, and legal documents, NAD83 has largely replaced it for most modern applications due to its improved accuracy and compatibility with GPS technology.

2.1.2 Reservoir Properties

1. Initial Reservoir Pressure
2. Reservoir Temperature
3. Assumed Reservoir Height
4. Assumed Frac Height
5. Porosity
6. Number of Fractures - Used as entered, if you want to account for efficiency, you will have to factor that in and enter the value here.
7. Initial Water Saturation
8. Rock Compressibility
9. Matrix and Fracture Gamma - For pressure dependent permeability adjustments.
10. Water Salinity - Impacts the density of the produced fluid, hence bottomhole pressure calculation, especially for salinity greater than 100,000 ppm.
11. Adsorption - Adsorption is only used for Dry Gas wells. You need the Langmuir pressure, Langmuir volume and shale density.

Additional information on rock (formation) compressibility

When is it less important
The rock compressibility will be less important for systems with gas in the system. Gas compressibility dominates the total compressibility for a gassy systems. It will be more important for low GOR oils, and water systems for instance, since the governing equation for the total compressibility is as follows: $$\begin{equation} c_t = c_gS_g + c_oS_o + c_wS_w + c_r \end{equation}$$

When is it very important
One place it's been found to be important to account for is in Vaca Muerta, in which super low GOR systems (300 scf/STB) can produce above psat for a long period of time. This is the closest thing to single-phase oil flow, from what we've seen at least.

A common correlation
This is a common correlation to estimate rock compressibility (Hall correlation). $$\begin{equation} c_f = 1.87 * 10^{-6} \phi^{-0.415} \end{equation}$$

Where is it used?
The rock compressibility is an input to FMB, RTA and numerical models, but typically considered of secondary importance.

Measurements
It can be measured in the lab (using triaxial compression test?). Typically the petrophysicists provide this number if our clients don't use the defaults in the software.

2.1.3 Completion Properties

1. Lateral Length
2. Fluid Pumped
3. Proppant Pumped
4. Stages
5. Clusters
6. Well Spacing
7. Well Classification - Bounded/Unbounded
8. Vintage - The year the well was put on production (POP) or turned in line (TIL).
9. True Vertical Depth (TVD) - Maximum TVD of the well - not used in calculations but used for filtering, classification, color by, and
10. Important Dates - Well spud date, rig release date, first production date, completion date.

The status of well data being added and analyses being performed are summarized here to the top-right with green/grey checkmarks. A green check mark indicates that the data and/or analysis has been carried out. User can jump to the corresponding module by clicking on the module name under the well data added or analyses performed.

2.2 Defaults in whitson⁺

When no values are specified for the reservoir properties, the software will automatically set the default values listed below.

Property	Default Value
Initial Reservoir Pressure (psia)	8000
Reservoir Temperature (F)	200
Assumed Reservoir Height (ft)	200
Assumed Frac Height (ft)	200
Porosity	0.05
Number of Fractures (#)	100
Initial Water Saturation (%)	30
Rock Compressibility (1e-6/psia)	4
Matrix Gamma (1e-4/psia)	0
Fracture Gamma (1e-4/psia)	0
Water Salinity (ppm)	0
Adsorption is active	No
Lateral Lenght GPI (ft)	5280

3. Scenario Overview

The first scenario performed after adding the well will automatically be placed in the Main scenario. Additionally, user can create a new scenario to the same well with or without changing any of its properties.

There are two alternative ways for the user to add a new scenario to same well:

First

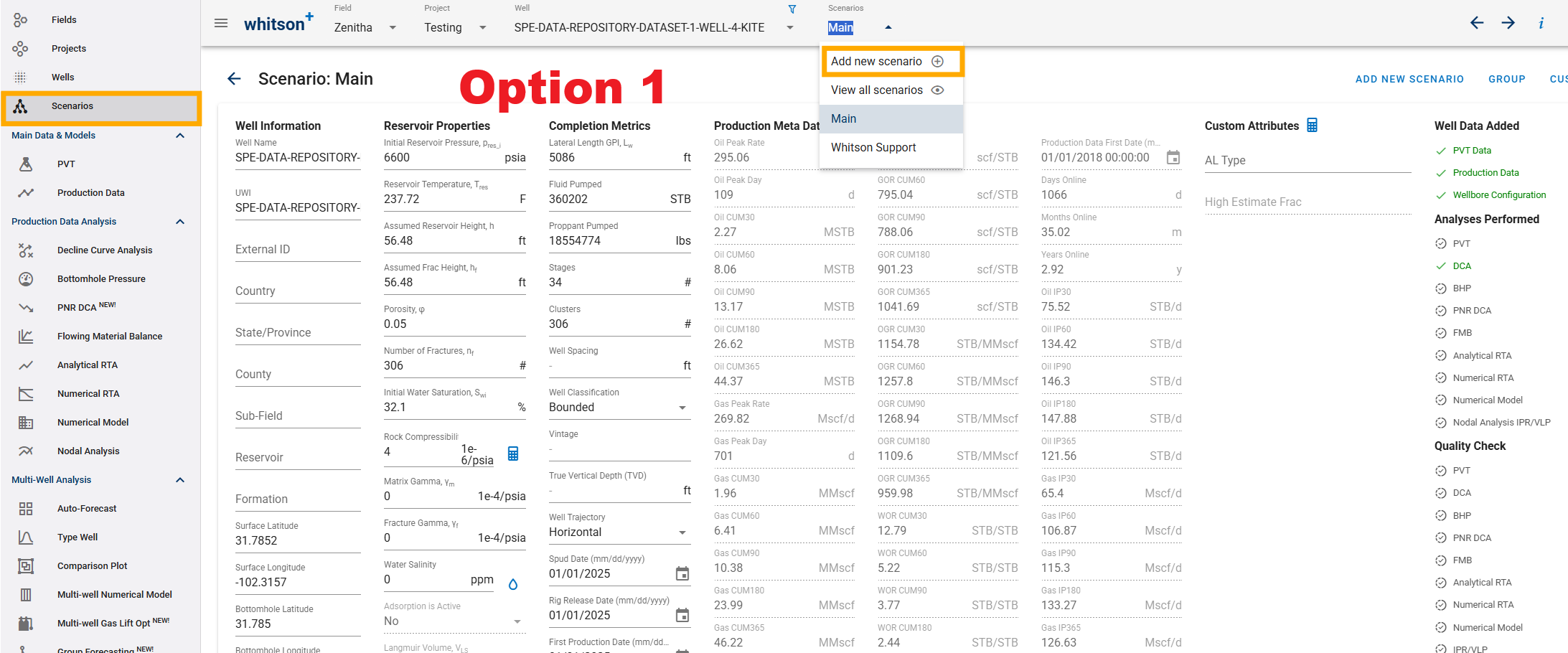

1. Hover and click ADD NEW SCENARIO.
2. Add new scenario name and click SAVE.

Or, second

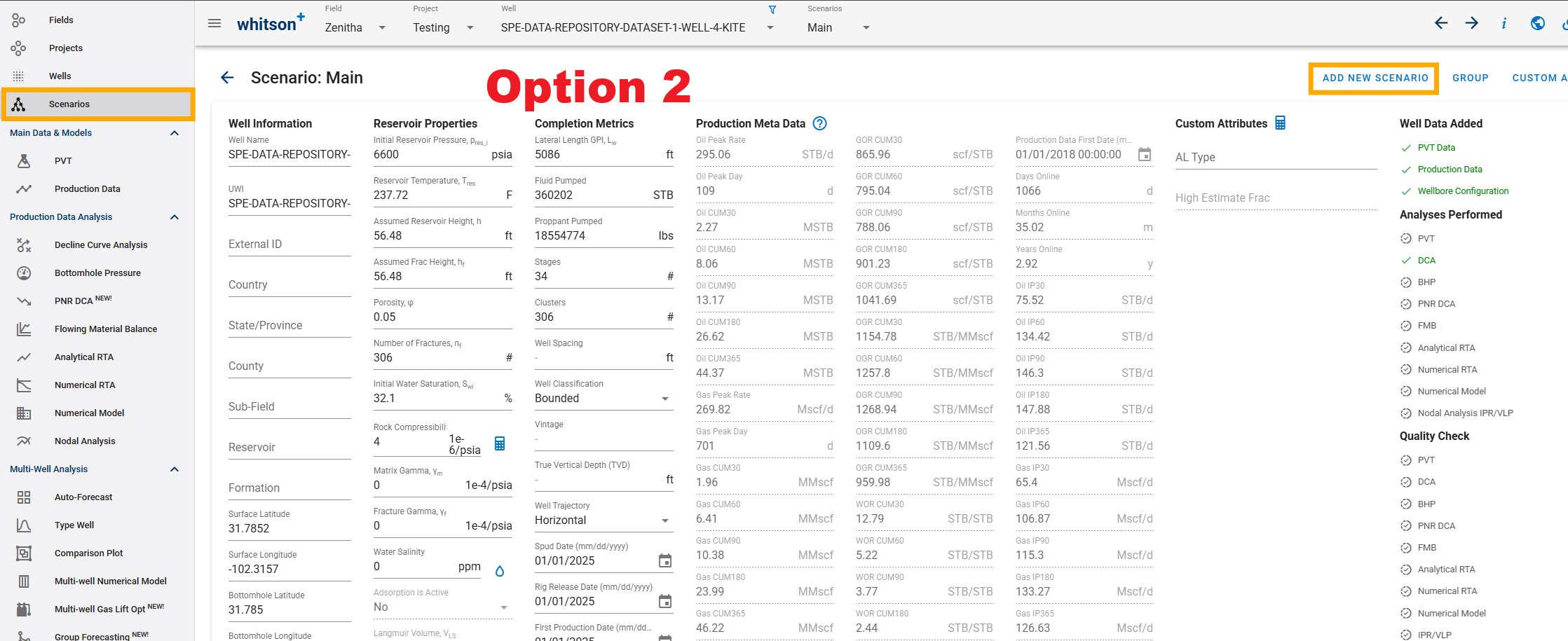

1. Hover to Scenarios dropdown menu on top of the page (next to Well Name).
2. Click Add new scenario.
3. Add new scenario name and click SAVE.
4. This method allows the user to add new scenario while on the module page. Then, it will be added on this scenario overview page automatically.
5. To see all scenarios, clik View all scenarios. It will redirect user to Scenarios page.
6. All steps are shown in the .gif above.

Additionally, we have added an option to specify the access type when creating a new scenario. Once you set the access type, it will remember your preference for future scenario creations.

Choose which scenario to see and work with from Scenarios drop down menu. To edit each scenario, click on vertical ellipsis to the right of the scenario row.

Scenarios Performed vs. Scenario Count

The Scenarios Performed on Scenarios page provides a comprehensive overview of the specific scenarios conducted within a given well under a particular scenario. That includes PVT, DCA, BHP, FMB, Analytical RTA, Numerical RTA and Numerical Model.

The Scenario Count refers to the scenarios that users add for a specific well. An scenario essentially duplicates a well, thereby sharing production data while maintaining separate parameters. This allows users the flexibility to perform their own scenario independently. Scenario count can be seen on the Well Overview page. It is worth noting that every well comes with a default scenario called Main, which is not included in the scenario count displayed in the software as shown in figure below.

4. Add Atribute(s)

To add a new attribute:

1. Hover and click ADD ATTRIBUTE.
2. Choose Attribute Type, it can be Text, Date, or Number.
3. Fill in the empty fields as desired.
4. Click SAVE.
5. All steps are shown in the .gif above.

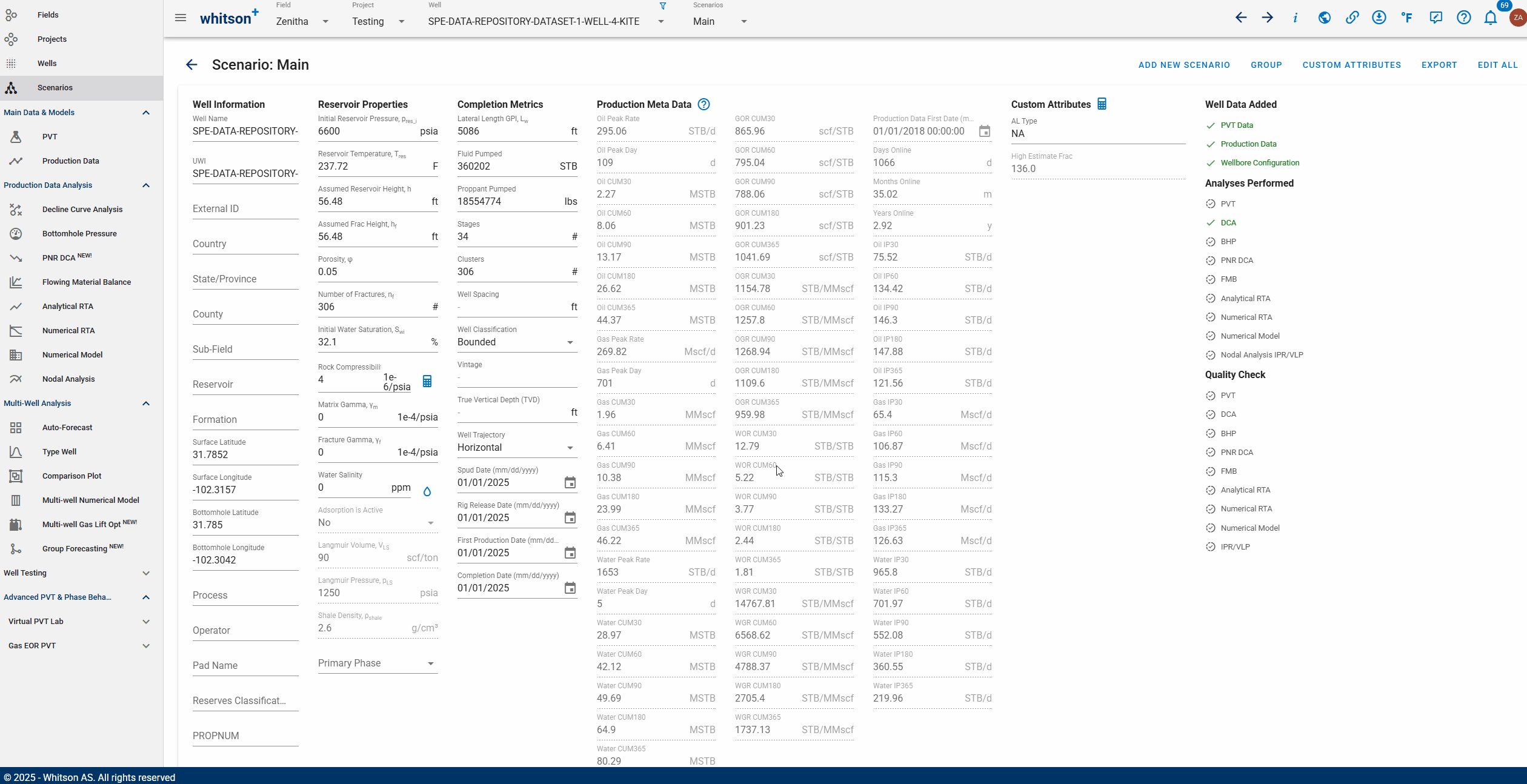

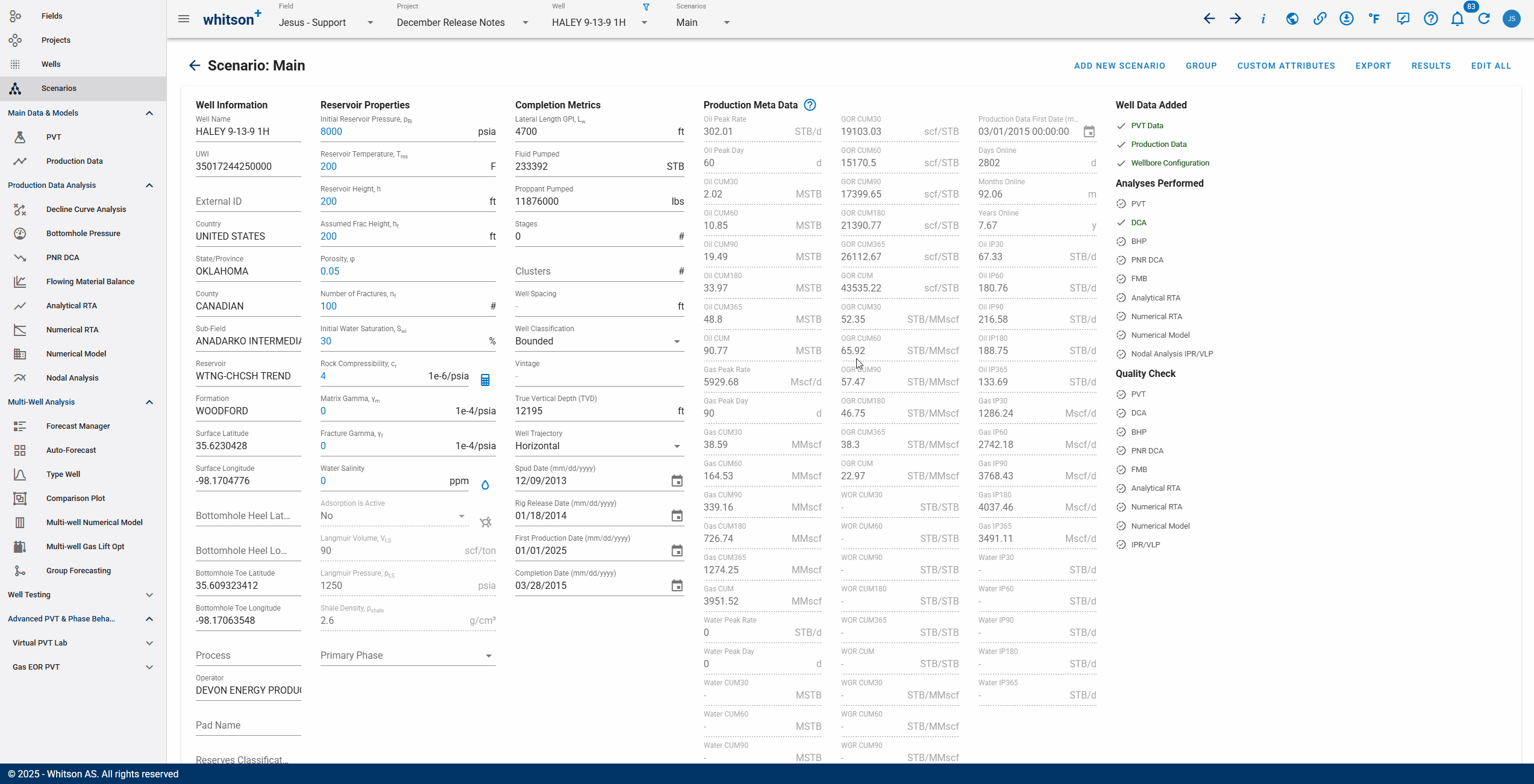

To manage custom attribute(s):

1. Click EDIT ALL at the top right of the page.
2. Click CUSTOM ATTRIBUTES.
   • Add Attribute: To add new attribute(s)
   • Calculate Attributes: To re-calculate all custom attributes
   • Manage Attributes: To edit and/or delete attribute(s)
3. All steps are shown in the .gif above.

5. Export

To export information of the well, click EXPORT at the top right of the page. The following data is included in the exported file:

1. Well Data - Property Overview
2. Surface Process
3. Production Data
4. Well Data - Composition
5. Deviation Survey Data
6. Wellbore Data

Note that the exported properties correspond to the selected scenario.

6. Edit All

The properties listed on this page can be mass edited by clicking EDIT ALL button at the top right of the page.

7. Discover Searchable Dropdown Menus

In whitson+ the dropdown menus are searchable, just start typing the well name to find it. There's no need to search for an exact match; you can simply search for "24-8H," for example, to find all matching results. See gif below.
